DIN 966 Specifications


Fasteners, Best Quality Fasteners

All measurements in millimeters (mm)

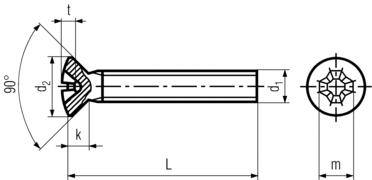

d1 d2 k max. Phillips m approx. t Proof Load N
min. max.
M2 3.8 1.2 1 2.5 1.1 1.4 600
M2.5 4.7 1.5 1 2.7 1.3 1.6 990
M3 5.6 1.65 1 3.1 1.7 2 1560
M4 7.5 2.2 2 4.5 2.04 2.54 2720
M5 9.2 2.5 2 5.3 2.77 3.27 4400
M6 11 3 3 6.8 3.03 3.53 6230
M8 14.5 4 4 9 4.18 4.68 11400
