DIN 912 Specifications


Fasteners, Best Quality Fasteners

All measurements in millimeters (mm)

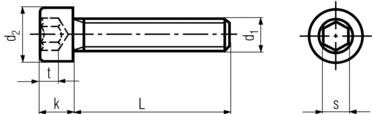

d1 t min s k max d2
M2 1 1.5 2 3.8
M3 1.3 2.5 3 5.5
M4 2 3 4 7
M5 2.5 4 5 8.5
M6 3 5 6 10
M8 4 6 8 13
M10 5 8 10 16
M12 6 10 12 18
M14 7 12 14 21
M16 8 14 16 24
M18 9 14 18 27
M20 10 17 20 30
M24 12 19 24 36
M27 13.5 19 27 40
M30 15.5 22 30 45
M36 19 27 36 54
