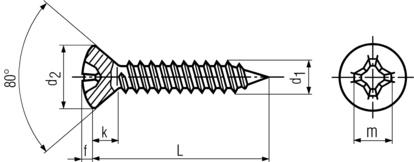

DIN 7983 Specifications


Fasteners, Best Quality Fasteners

All measurements in millimeters (mm)

d1 d2 max. k approx. f approx. m approx. Cross Recess No.
2.2 4.3 1.3 0.7 2.8 H1
2.9 5.5 1.7 0.9 3.4 H1
3.5 6.8 2.1 1.2 4.6 H2
3.9 7.5 2.3 1.3 4.7 H2
4.2 8.1 2.5 1.4 4.9 H2
4.8 9.5 3 1.5 5.4 H2
5.5 10.8 3.4 1.7 7 H3
6.3 12.4 3.8 2 - H3
8 15.8 4.65 - - -
