DIN 7982 Specifications


Fasteners, Best Quality Fasteners

All measurements in millimeters (mm)

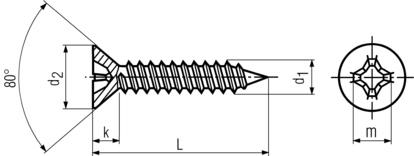

d1 d2 max k max m approx. Cross Recess No.
2.2 4.3 1.3 2.5 H1
2.9 5.5 1.7 3 H1
3.5 6.8 2.1 4.2 H2
3.9 7.5 2.3 4.6 H2
4.2 8.1 2.5 4.7 H2
4.8 9.5 3 5.1 H2
5.5 10.8 3.4 6.8 H3
6.3 12.4 3.8 7.1 H3
8 15.8 4.65 -  -
