DIN 6912 Specifications


Fasteners, Best Quality Fasteners

All measurements in millimeters (mm)

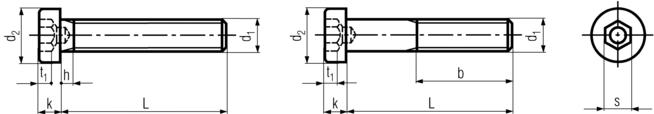

d1 b t1 min s k max d2 max
M4 14 1.48 3 2.8 7
M5 16 1.88 4 3.5 8.5
M6 18 2.38 5 4 10
M8 22 2.88 6 5 13
M10 26 3.35 8 6.5 16
M12 30 3.85 10 7.5 18
M14 34 4.35 12 8.5 21
M16 38 5.35 14 10 24
M20 46 6.32 17 12 30
M24 54 6.82 19 14 36
M30 66 8.82 22 17.5 45
