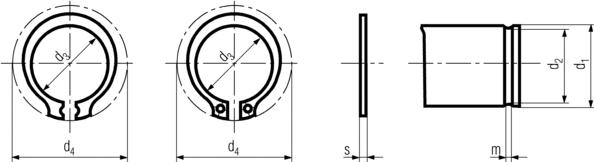

DIN 471 Specifications

DIN 471 Specifications

Fasteners, Best Quality Fasteners

All measurements in millimeters (mm)

d1	s	d3
M3	0.4	2.7
M4	0.4	3.7
M5	0.6	4.7
M6	0.7	5.6
M7	0.8	6.5
M8	0.8	7.4
M9	1	8.4
M10	1	9.3
M11	1	10.2
M12	1	11
M13	1	11.9
M14	1	12.9
M15	1	13.8
M16	1	14.7
M17	1	15.7
M18	1.2	16.5
M19	1.2	17.5
M20	1.2	18.5
M21	1.2	19.5
M22	1.2	20.5
M23	1.2	21.4
M24	1.2	22.2
M25	1.2	23.2
M26	1.2	24.2
M27	1.2	25.1
M28	1.5	25.9
M29	1.5	26.9
M30	1.5	27.9
M31	1.5	28.7
M32	1.5	29.6
M33	1.5	30.5
M34	1.5	31.5
M35	1.5	32.2
M36	1.75	33.2
M37	1.75	34.2
M38	1.75	35.2
M39	1.75	35.8
M40	1.75	36.5
M41	1.75	37.5
M42	1.75	38.5
M44	1.75	40.5
M45	1.75	41.5
M46	1.75	42.5
M47	1.75	43.5
M48	1.75	44.5
M50	2	45.8
M52	2	47.8
M54	2	49.8
M55	2	50.8
M56	2	51.8
M57	2	52.8
M58	2	53.8
M60	2	55.8
M62	2	57.8
M63	2	58.8
M65	2.5	60.8
M67	2.5	62.6
M68	2.5	63.5
M70	2.5	65.5
M72	2.5	67.5
M75	2.5	70.5
M77	2.5	72.5
M78	2.5	73.5
M80	2.5	74.5
M82	2.5	76.5
M85	3	79.5
M87	3	81.5
M88	3	82.5
M90	3	84.5
M92	3	84.5
M95	3	89.5
M97	3	89.5
M98	3	89.5
M100	3	94.5
M102	3	94.5
M105	4	98
M107	4	98
M108	4	98
M11
