DIN 1481 Specifications


Fasteners, Best Quality Fasteners

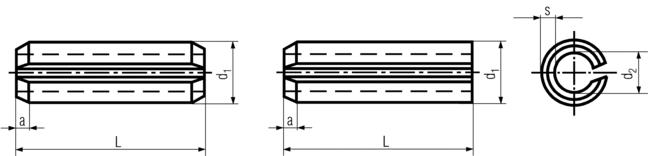

All measurements in millimeters (mm)

d s a d1 min d2 approx
M1 0.2 0.15 1.2 0.8
M1.5 0.3 0.25 1.7 1.1
M2 0.4 0.35 2.3 1.5
M2.5 0.5 0.4 2.8 1.8
M3 0.6 0.5 3.3 2.1
M4 0.8 0.65 4.4 2.8
M5 1 0.9 5.4 3.4
M6 1.25 1.2 6.4 3.9
M8 1.5 2 8.5 5.5
M10 2 2 10.5 6.5
M12 2.5 2 12.5 7.5
M16 3 2 16.5 10.5
